ETC-P6 led headlight conversion kit/halogen replacement/car headlight(4800LM、40W)

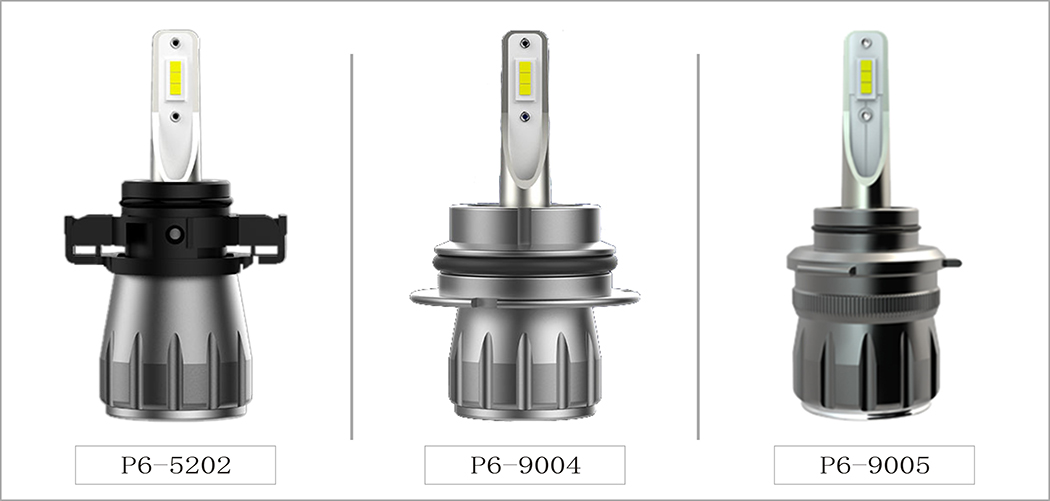

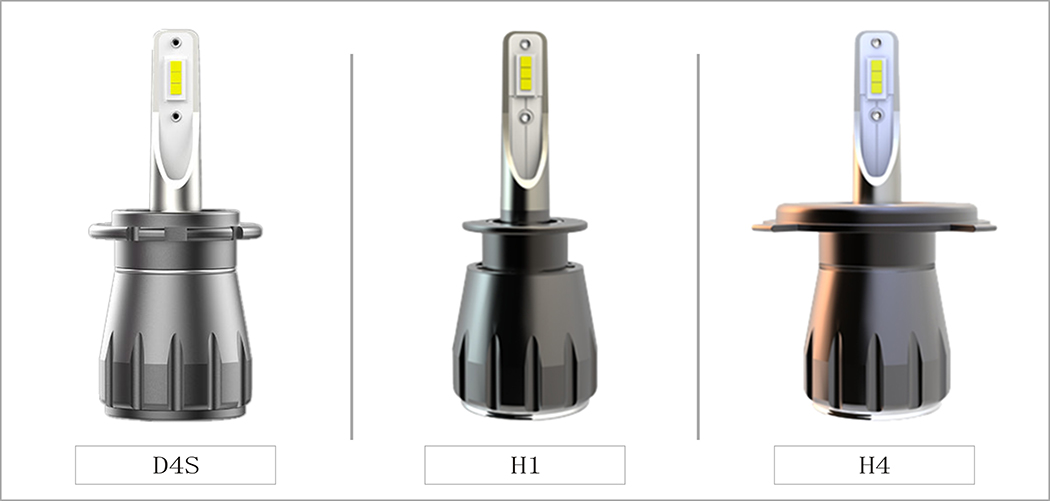

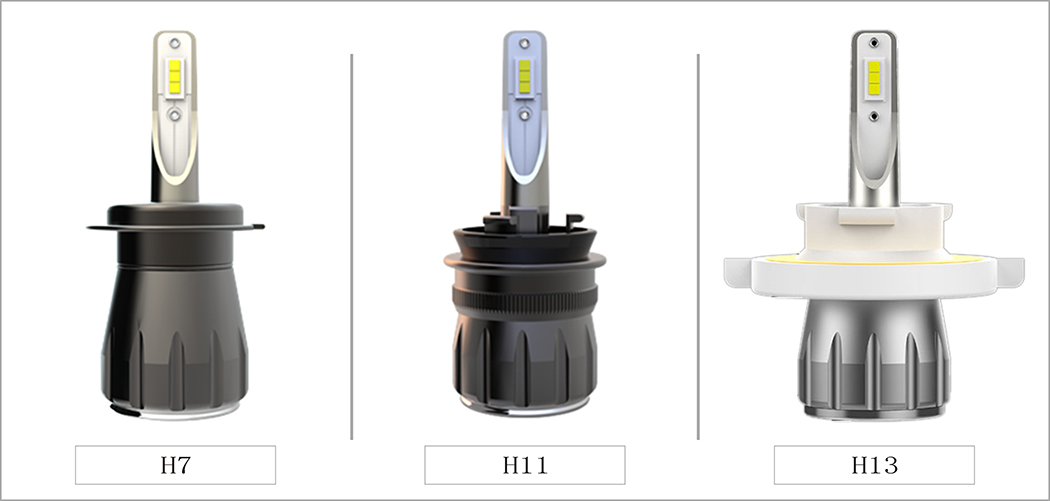

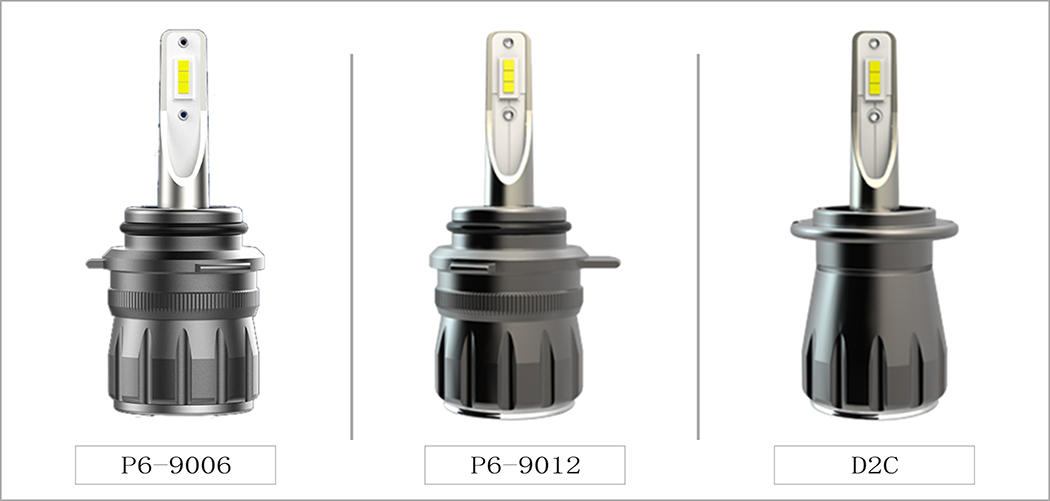

Single beam:H1/H7/H8/H10/H11/881/9005/9006/9012/D series;

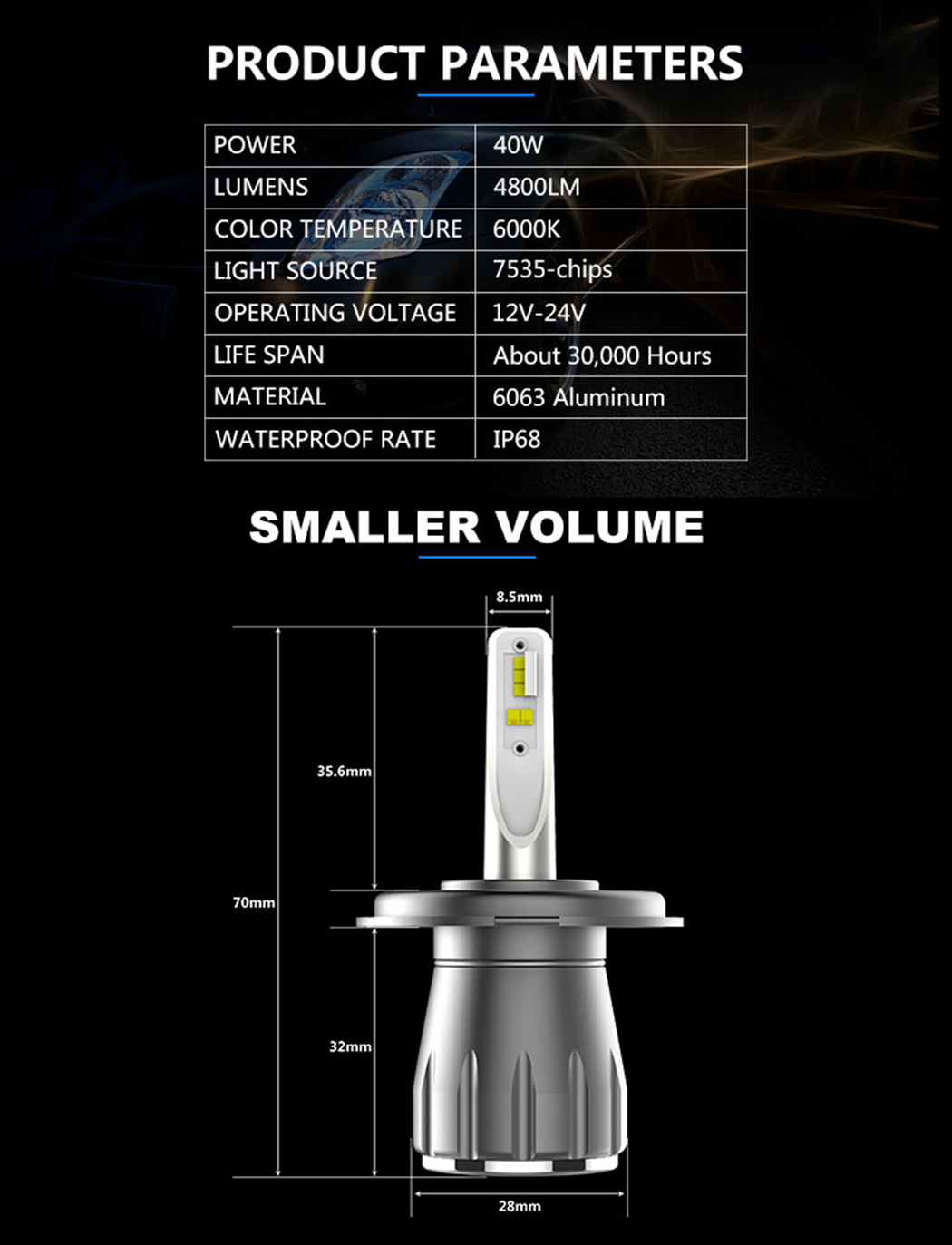

P6 led headlight specification
LED Quantity: 6pcs-ZES/bulb
Color Temperature: 6000K
Beam Angle: 360°
Usage: Head Light
Waterproof Rate：IP 68
1. Appearance: The volume of the radiator is smaller than most of the headlights on the market (28mm in diameter, 26mm in length of the radiator); built-in fan, completely sealed on the back (different from traditional fan cooling, not afraid of fans exposed to the outside or working for a long time, the fan is affected by dust and mud to the working stability of the lamp); all models of the card holder are detachable and adjustable design, which can be installed more than 95% of models on the market.

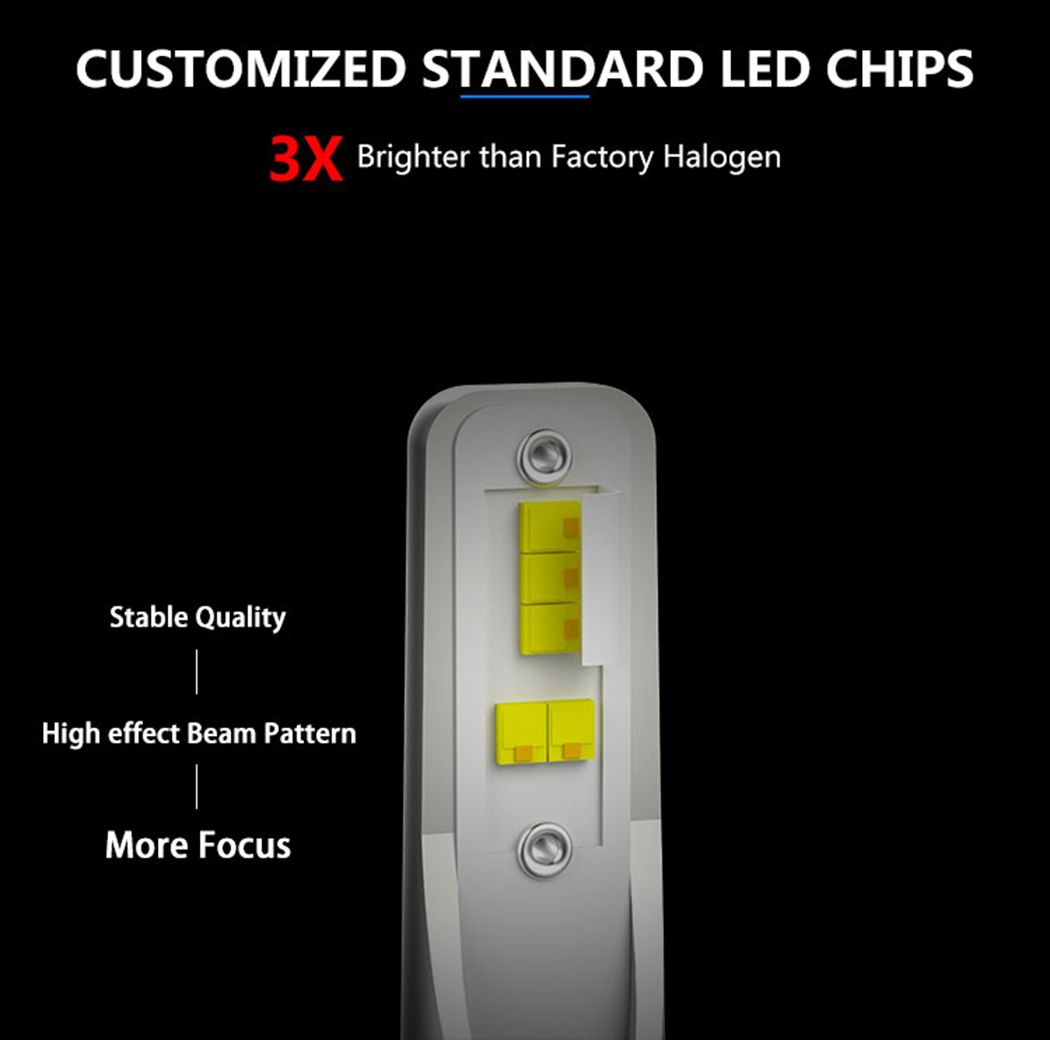

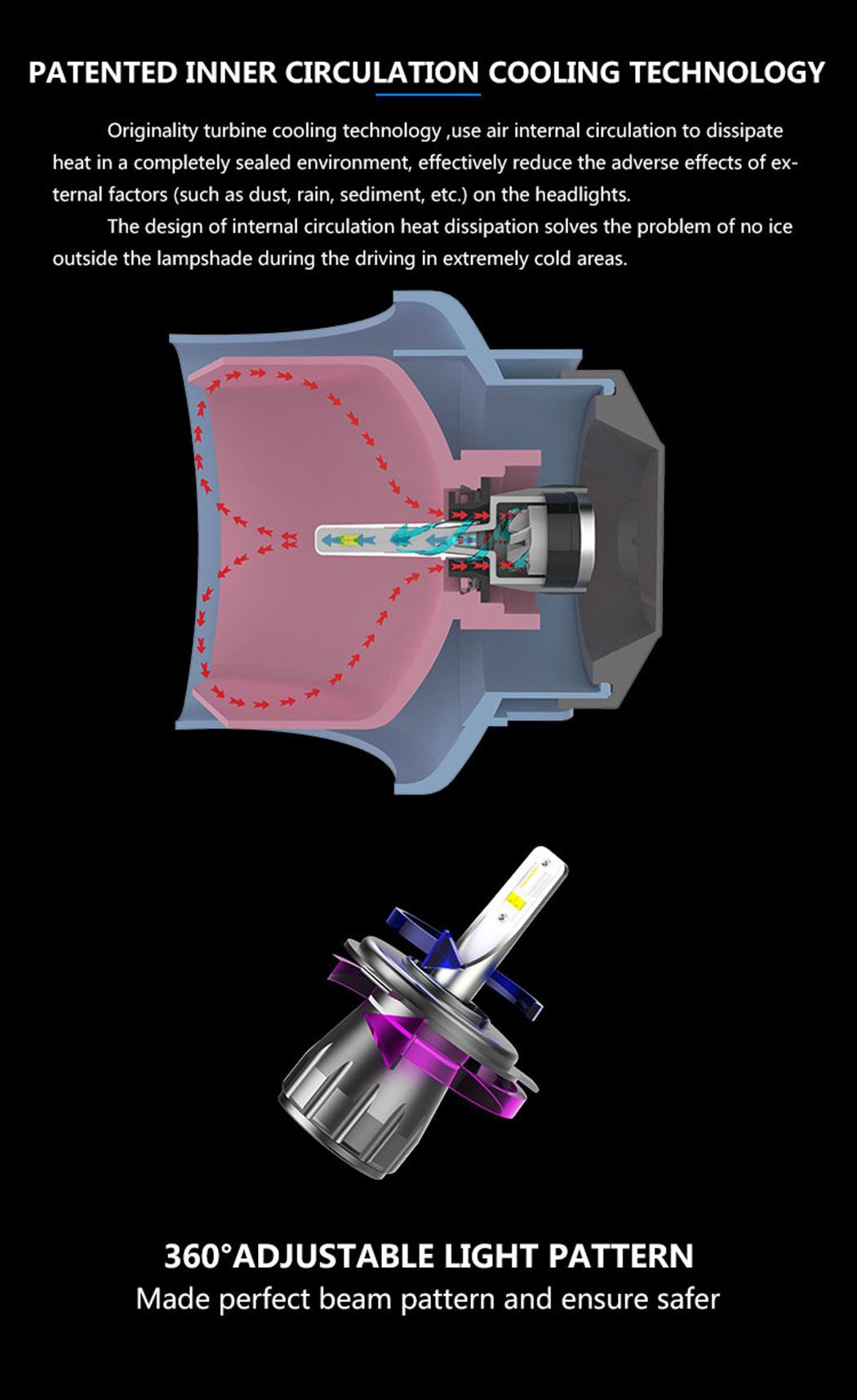

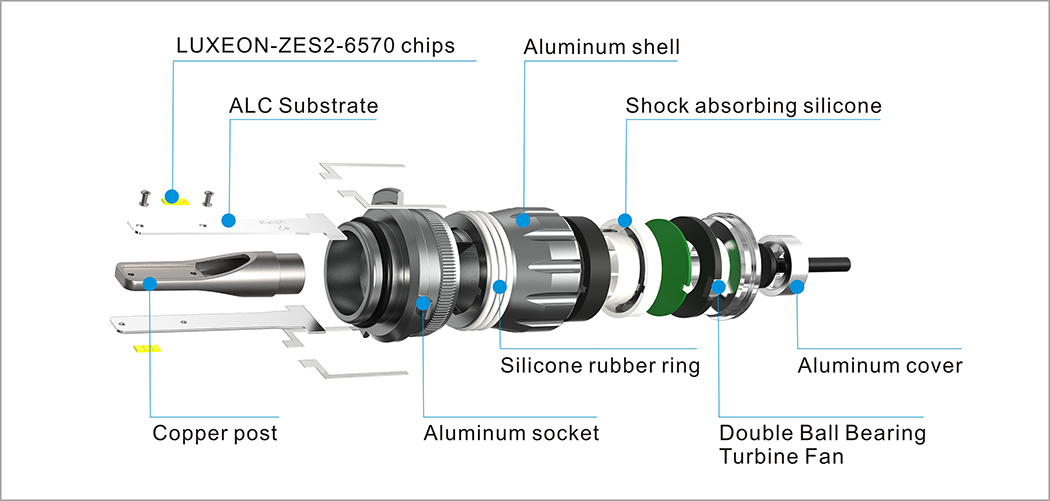

2. Heat dissipation principle:The high-power chip with customized ETI (single 10W/80μ, a total of 6 pieces, 60W/whole lamp) is packaged on a 0.5mm thick ceramic thermal circuit board, and then the solid copper heat conduction lamp post will be used. Part of the heat is directed to the aluminum alloy body. Because the back is completely sealed, it is equipped with a super-high speed (about 10,000 rpm) silent Double ball bearing turbine fan. It is designed with an exclusive patented internal circulation air cooling method. The effective output power is about 22W and the lumen can reach 2600LM. The long-term operating temperature of the chip in a sealed luminaire can be controlled at a safe operating temperature of 105 ° C - 130 ° C.

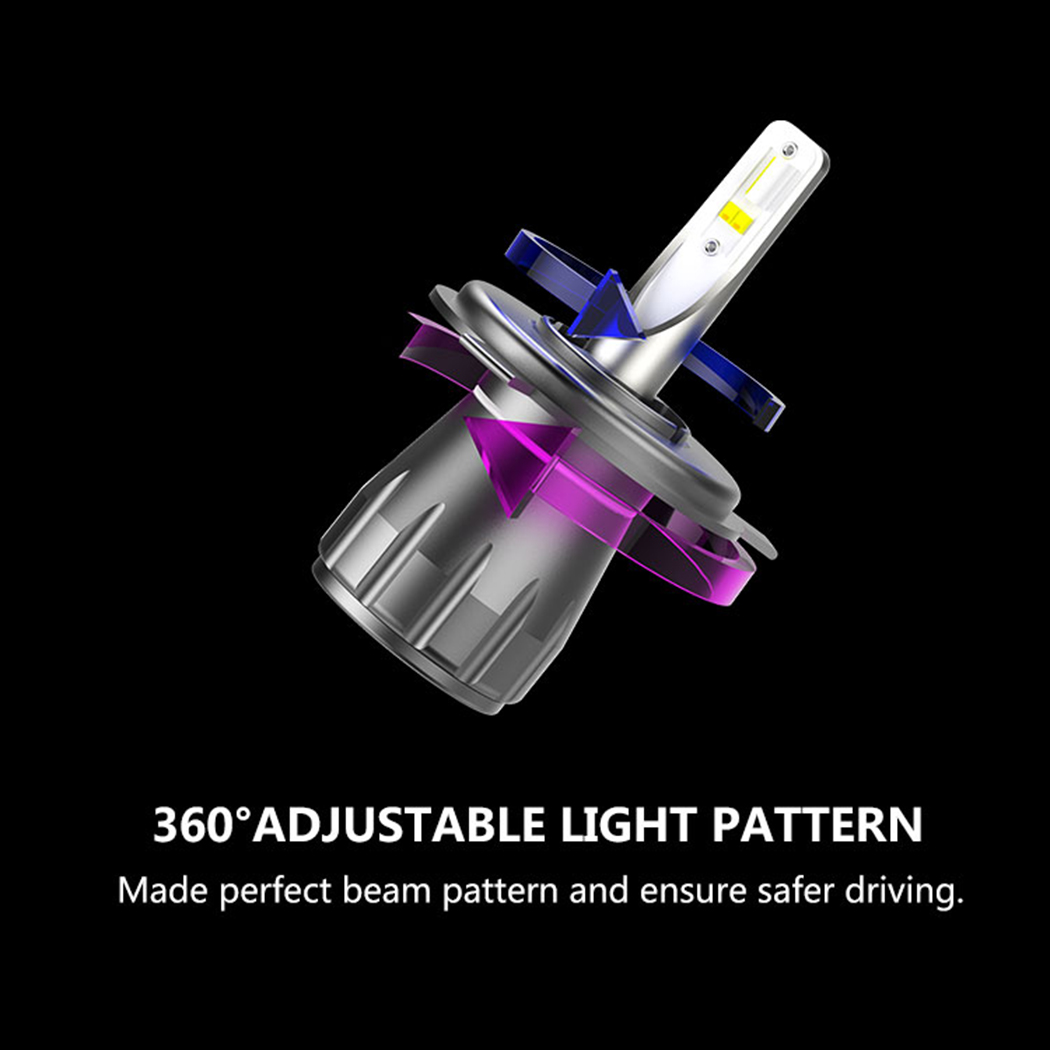

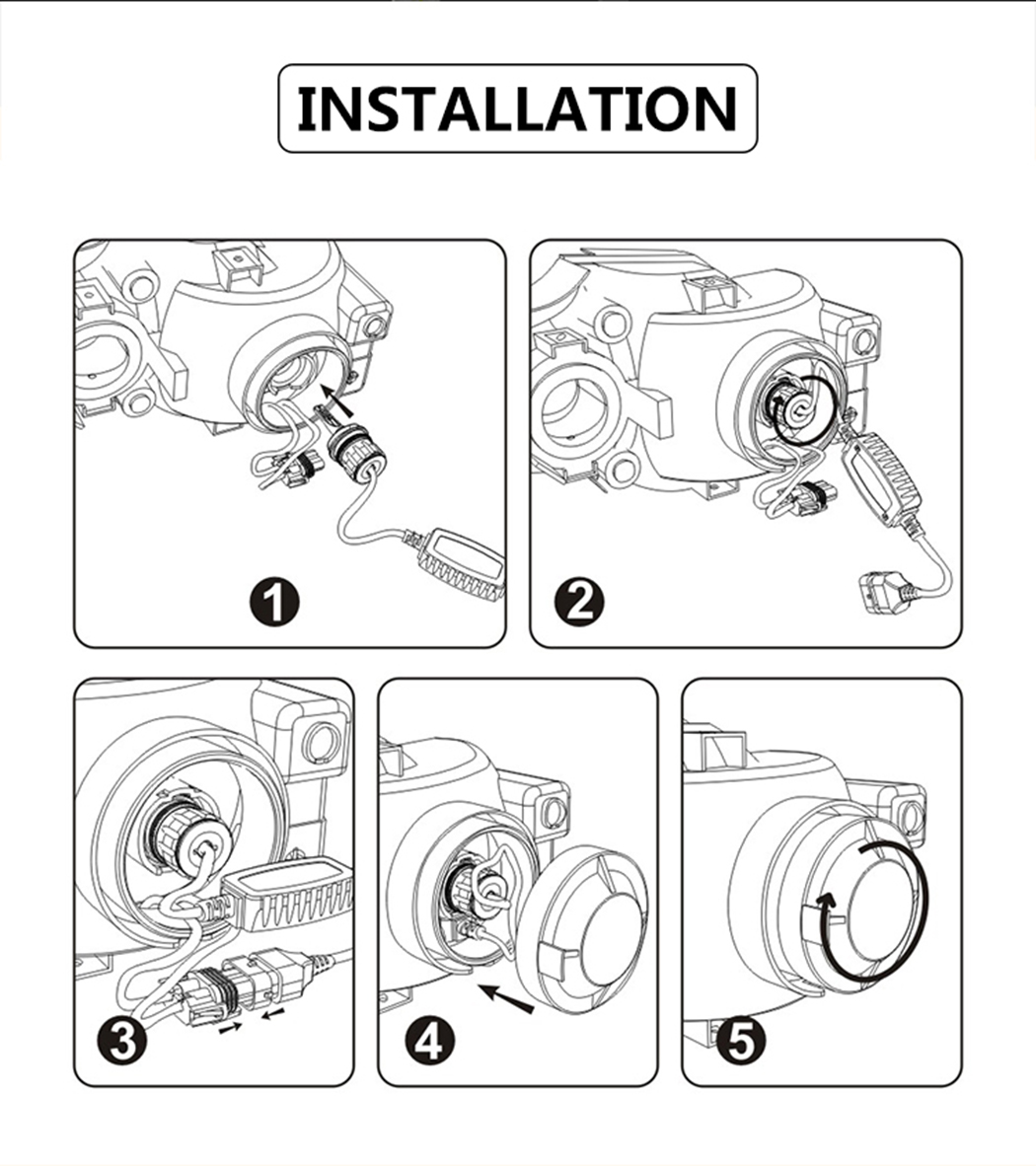

3. Installation: The model is complete and the deck has a unique detachable and adjustable design. It is more convenient to install and debug light types under special circumstances.
4. Snow melt function: Due to the principle of internal air circulation and heat dissipation of the lamp, when the lamp is working, the air in the lamp is kept at a temperature of about 40-50 °C, and the external temperature of the lamp can reach about 20 °C. When driving in snow, A portion of the snow attached to the surface of the luminaire can be removed. It is especially suitable for use in markets where the climate is colder and snowier.
5. Basic CAN-BUS: The circuit is added to the drive for most CAN-BUS bus detection functions (ie simple CAN-BUS).
Not suitable for areas that are too hot, installed in a small assembly will result in reduced power.
